Steamworks Documentation
Step by Step: Achievements
In Brief
Use achievements to reward players for hitting certain milestones or for interacting with your game in particular ways.
Level of integration
10 minutes and under 10 lines of code. Steamworks SDK integration necessary.

Introduction

Achievements can be used as a way to encourage and reward player interactions and milestones within your game. They are often used for marking number of kills, miles driven, chests opened or other common actions within your game. And they can also be used to help your players discover different ways of playing your game. Atunci când sunt deblocate, aceste realizări vor fi afișate sub forma unei notificări pop-up în ferestrele jucătorilor și vor marcate ca fiind deblocate pe paginile cu realizări ale jucătorilor.

Technical Overview

The following is a quick step by step guide to integrating very basic Steam Achievements into your application in under 10 minutes and under 10 lines of code integrated into your code base. The Steamworks SDK comes with a great example application called Spacewar that shows off the full breadth of Steam features and should be your first stop to see all Steam features in action. This tutorial distills the information found in Spacewar and the Stats and Achievements API down to just the necessary information required for Steam Stats to keep things as straightforward as possible. Please note that there is a considerable amount of overlap between stats and achievements, as such if you are integrating both be aware that a lot of calls can be consolidated.

Step 1 - Defining your game's Achievements

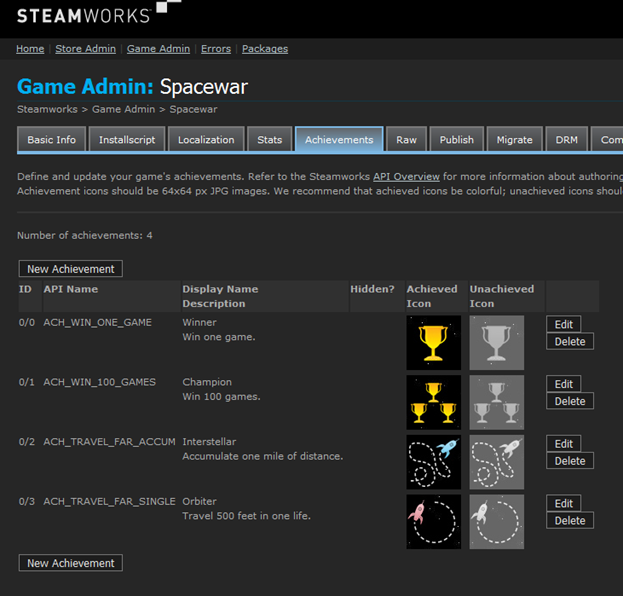

Achievements are application specific and are setup on the Achievement Configuration page in the Steamworks App Admin backend. The following is the list of achievements from the Steamworks sample app Spacewar:


Step 2 - Encapsulating Achievements work

The following code is game independent and can be added to your game as you see fit. The class is fully functional as is but can be easily extended to meet any further needs. All of this code was taken directly from the Spacewar example files StatsAndAchievements.cpp/h.

Header File

We first define a structure to hold our achievement data received from Steam and provide a macro for creating objects of that type. This data maps directly to what is found on the Achievement Configuration page.
#define _ACH_ID( id, name ) { id, #id, name, "", 0, 0 } struct Achievement_t { int m_eAchievementID; const char *m_pchAchievementID; char m_rgchName[128]; char m_rgchDescription[256]; bool m_bAchieved; int m_iIconImage; };

Next we define a helper class that will wrap all of the Steam Stats API calls as well as creating all of the Steam callbacks.
class CSteamAchievements { private: int64 m_iAppID; // Our current AppID Achievement_t *m_pAchievements; // Achievements data int m_iNumAchievements; // The number of Achievements bool m_bInitialized; // Have we called Request stats and received the callback? public: CSteamAchievements(Achievement_t *Achievements, int NumAchievements); ~CSteamAchievements(); bool RequestStats(); bool SetAchievement(const char* ID); STEAM_CALLBACK( CSteamAchievements, OnUserStatsReceived, UserStatsReceived_t, m_CallbackUserStatsReceived ); STEAM_CALLBACK( CSteamAchievements, OnUserStatsStored, UserStatsStored_t, m_CallbackUserStatsStored ); STEAM_CALLBACK( CSteamAchievements, OnAchievementStored, UserAchievementStored_t, m_CallbackAchievementStored ); };

Code File

Constructor

Parameters - The constructor takes a pointer to an array of achievements along with the length of the array. The formating of that array will be covered in the main game code later.
Returns - N/A
What it does - The constructor initializes a number of members along with grabbing the AppID we are currently running as. In addition it hooks up the call back methods to handle asynchronous calls made to Steam. Finally it makes an initial call to RequestStats() to get stats and achievements for the current user.
CSteamAchievements::CSteamAchievements(Achievement_t *Achievements, int NumAchievements): m_iAppID( 0 ), m_bInitialized( false ), m_CallbackUserStatsReceived( this, &CSteamAchievements::OnUserStatsReceived ), m_CallbackUserStatsStored( this, &CSteamAchievements::OnUserStatsStored ), m_CallbackAchievementStored( this, &CSteamAchievements::OnAchievementStored ) { m_iAppID = SteamUtils()->GetAppID(); m_pAchievements = Achievements; m_iNumAchievements = NumAchievements; RequestStats(); }

RequestStats()

Parameters - None
Returns - a bool representing if the call succeeded or not. If the call failed then most likely Steam is not initialized. Make sure you have a Steam client open when you try to make this call and that SteamAPI_Init has been called before it.
What it does - This method basically wraps a call to ISteamUserStats::RequestCurrentStats which is an asynchronous call to steam requesting the stats and achievements of the current user. This call needs to be made before you can set any stats or achievements. The initial call to this method is made in the constructor. You can call it again any time after that if you want to check on updated stats or achievements.
bool CSteamAchievements::RequestStats() { // Is Steam loaded? If not we can't get stats. if ( NULL == SteamUserStats() || NULL == SteamUser() ) { return false; } // Is the user logged on? If not we can't get stats. if ( !SteamUser()->BLoggedOn() ) { return false; } // Request user stats. return SteamUserStats()->RequestCurrentStats(); }

SetAchievement()

Parameters - The string identifier of the Achievement that you want to set (ie. "ACH_WIN_ONE_GAME")
Returns - a bool representing if the call succeeded or not. If the call failed then either Steam is not initialized or you still haven't processed the callback from the initial call to RequestStats. You can't set any achievements until that callback has been received.
What it does - This method sets a given achievement to achieved and sends the results to Steam. You can set a given achievement multiple times so you don't need to worry about only setting achievements that aren't already set. This is an asynchronous call which will trigger two callbacks: OnUserStatsStored() and OnAchievementStored().
bool CSteamAchievements::SetAchievement(const char* ID) { // Have we received a call back from Steam yet? if (m_bInitialized) { SteamUserStats()->SetAchievement(ID); return SteamUserStats()->StoreStats(); } // If not then we can't set achievements yet return false; }

OnUserStatsReceived()

Parameters - N/A
Returns - Nothing
What it does - This method is a callback that is called anytime you attempt to request stats. Stats and achievements are requested by using RequestStats(). The method updates the member variable m_pAchievements to reflect the latest stats and achievement data returned from Steam.
void CSteamAchievements::OnUserStatsReceived( UserStatsReceived_t *pCallback ) { // we may get callbacks for other games' stats arriving, ignore them if ( m_iAppID == pCallback->m_nGameID ) { if ( k_EResultOK == pCallback->m_eResult ) { OutputDebugString("Received stats and achievements from Steam\n"); m_bInitialized = true; // load achievements for ( int iAch = 0; iAch < m_iNumAchievements; ++iAch ) { Achievement_t &ach = m_pAchievements[iAch]; SteamUserStats()->GetAchievement(ach.m_pchAchievementID, &ach.m_bAchieved); _snprintf( ach.m_rgchName, sizeof(ach.m_rgchName), "%s", SteamUserStats()->GetAchievementDisplayAttribute(ach.m_pchAchievementID, "name")); _snprintf( ach.m_rgchDescription, sizeof(ach.m_rgchDescription), "%s", SteamUserStats()->GetAchievementDisplayAttribute(ach.m_pchAchievementID, "desc")); } } else { char buffer[128]; _snprintf( buffer, 128, "RequestStats - failed, %d\n", pCallback->m_eResult ); OutputDebugString( buffer ); } } }

OnUserStatsStored()

Parameters - N/A
Returns - Nothing
What it does - This method is a callback that is called anytime you attempt to store stats on Steam.
void CSteamAchievements::OnUserStatsStored( UserStatsStored_t *pCallback ) { // we may get callbacks for other games' stats arriving, ignore them if ( m_iAppID == pCallback->m_nGameID ) { if ( k_EResultOK == pCallback->m_eResult ) { OutputDebugString( "Stored stats for Steam\n" ); } else { char buffer[128]; _snprintf( buffer, 128, "StatsStored - failed, %d\n", pCallback->m_eResult ); OutputDebugString( buffer ); } } }

OnAchievementStored()

Parameters - N/A
Returns - Nothing
What it does - This method is a callback that is called anytime Achievements are successfully stored on Steam.
void CSteamAchievements::OnAchievementStored( UserAchievementStored_t *pCallback ) { // we may get callbacks for other games' stats arriving, ignore them if ( m_iAppID == pCallback->m_nGameID ) { OutputDebugString( "Stored Achievement for Steam\n" ); } }

Step 3 - Integrating into your game

The following is a complete listing of code snippets that you would need to integrate into your game in the appropriate locations.

Defines and Globals

The following is the list of includes that are needed to build with Achievements, an enum of our game specific achievements and a global pointer to our helper object. Please note that the achievements match those of the Admin page on Steamworks.
... #include "steam_api.h" // Defining our achievements enum EAchievements { ACH_WIN_ONE_GAME = 0, ACH_WIN_100_GAMES = 1, ACH_TRAVEL_FAR_ACCUM = 2, ACH_TRAVEL_FAR_SINGLE = 3, }; // Achievement array which will hold data about the achievements and their state Achievement_t g_Achievements[] = { _ACH_ID( ACH_WIN_ONE_GAME, "Winner" ), _ACH_ID( ACH_WIN_100_GAMES, "Champion" ), _ACH_ID( ACH_TRAVEL_FAR_ACCUM, "Interstellar" ), _ACH_ID( ACH_TRAVEL_FAR_SINGLE, "Orbiter" ), }; // Global access to Achievements object CSteamAchievements* g_SteamAchievements = NULL; ...

Initialization

The call to SteamAPI_Init initializes all of Steam and must be called before anything else. If that call succeeds then we create the helper object by passing in the array of achievements along with the size of the array.
... // Initialize Steam bool bRet = SteamAPI_Init(); // Create the SteamAchievements object if Steam was successfully initialized if (bRet) { g_SteamAchievements = new CSteamAchievements(g_Achievements, 4); } ...

Processing Callbacks

To ensure that we process all Steam callbacks we need to regularly pump for new messages. This is achieved by adding this call to the game loop.
... SteamAPI_RunCallbacks(); ...

Triggering Achievements

Triggering an achievement is as simple as a single call passing along the achievement identifier.
... if (g_SteamAchievements) g_SteamAchievements->SetAchievement("ACH_WIN_100_GAMES"); ...

Shutdown

The call to SteamAPI_Shutdown is probably something you already have in your code. It shuts down Steam and must be called before your application exits. Finally we delete the helper object we created.
... // Shutdown Steam SteamAPI_Shutdown(); // Delete the SteamAchievements object if (g_SteamAchievements) delete g_SteamAchievements; ...

Step 4 - Testing and Troubleshooting


To set or clear stats or an achievement without adding code to your game, you can use the Steam client console. Run with steam.exe -console, then:
  • achievement_clear <appid> <achievement name>
  • reset_all_stats <appid>
